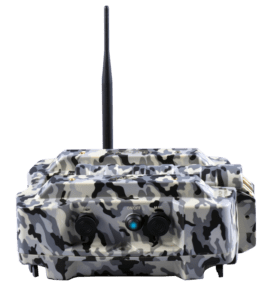

APEX Above Ground Marker
Revolutionizing Remote Pig Tracking and Pipeline Monitoring.
The APEX Above Ground Marker (AGM) is the most advanced Above Ground Marker on the market, designed for oil and gas pipeline operators, integrity management professionals, and field technicians who require accurate and reliable pig tracking. Discover more insights in our Frequently Asked Smart Pigging Questions Section.
With real-time connectivity through LTE and an optional Iridium satellite modem, the APEX AGM allows users to track pigs from any location, ensuring continuous data flow even in the most remote regions. Equipped with sophisticated signal processing and GPS-based timing, the APEX AGM detects and timestamps pigs with unrivalled accuracy. Whether it’s monitoring from the field or the safety of an office, APEX AGM provides unparalleled insight into pipeline operations, reducing false positives and enabling efficient pig tracking.
Product Features
Internet-Connected Tracking
The APEX AGM enables remote pig detection and monitoring via LTE or Iridium satellite connections, giving users access to real-time data from any location.
GPS-Enabled Precision Timing
With GPS and pulse-per-second synchronization, the APEX AGM timestamps each pig’s passage with extreme accuracy, ensuring precise data for critical decision-making.
Advanced Signal Processing
Detects pigs using magnetic fields and low-frequency electromagnetic signals, providing robust detection even under challenging conditions, reducing the risk of missed passages.
False Positive Reduction
A machine learning algorithm filters out false positives from external magnetic interference, streamlining data for easier analysis and ensuring reliable detection.
Live Data Streaming with Geophone Audio
Users can stream live data, including geophone audio, directly to their office, eliminating the need for handheld devices in the field and enhancing real-time monitoring capabilities.
Multi-Device Management with PigView Web
PigView Web enables seamless control of multiple APEX AGMs, allowing users to download data or configure devices across an entire fleet simultaneously, saving time and simplifying large-scale operations.
Bluetooth Mobile Connectivity with PigView Mobile
With PigView Mobile, users can easily set up, configure, and download data from their APEX AGM using a mobile phone or tablet, providing convenience for field technicians.

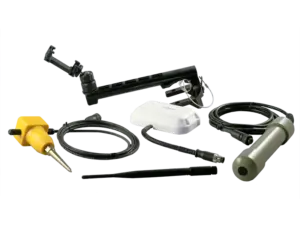

Handheld Functionality with Handle Accessory
The APEX AGM combines a handheld receiver and remote tracking in a single unit. With the optional handle accessory, field technicians can easily locate pigs in launchers, receivers, or find a stuck pig — enhancing mobility and versatility on the job.
Technical Specifications
- Battery Life: 144 hours – Active Mode; 400 hours – Low Power; Depends on Temperature, Cell Coverage and Electromagnetic Conditions
- Batteries: 6 x D Cell Alkaline and External Power
- Internal Storage: Micro SD Card, 16 GB standard
- Devices Detected: All EM frequencies, magnets plus Geophone sound, 22 Hz and 10-30 Hz
- Internal GPS: 3 m accuracy
- Temperature Range: -40°C to +85 °C

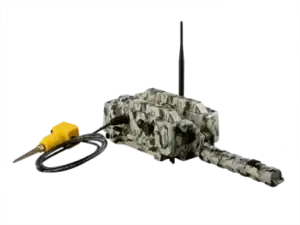

- Geophone: External Connector and Internal Amplifier
- Communications: Cellular LTE, Iridium Satellite , Bluetooth
- User Interface: Web Based Software, Android Application
