Pipeline monitoring is a critical aspect of maintaining the safety, reliability, and efficiency of oil and gas transportation. Above Ground Markers (AGMs) play a pivotal role in this process by enabling precise tracking of pipeline inspection tools and ensuring accurate data collection during pipeline integrity assessments.
Pipeline inspection tools, like smart pigs. caliper pigs. AGMs. etc., are specialized devices used to assess the condition of pipelines, detect defects, and ensure safety and efficiency in oil, gas, and other fluid transportation systems. These tools help operators identify corrosion, cracks, leaks, and other structural issues before they become major problems.
Here, we explore the role of AGMs in pipeline monitoring and outline best practices to maximize their effectiveness.
What Are Above Ground Markers (AGMs)?

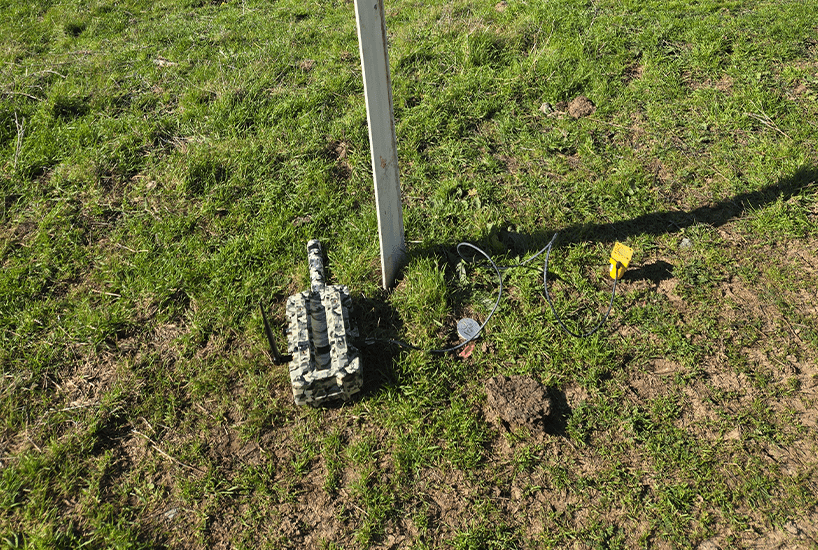

Above-ground markers (AGMs) are devices strategically placed along a pipeline’s route to detect and record the passage of pigs. These markers work in conjunction with electromagnetic transmitters embedded in the pigs, allowing operators to pinpoint their location and log critical events such as velocity changes or obstructions. AGMs are indispensable for ensuring the accuracy of in-line inspection (ILI) data and confirming tool passage during maintenance and integrity checks.
Key Benefits of AGMs in Pipeline Monitoring
Accurate Pig Tracking
AGMs detect the exact location of pigs as they move through the pipeline. Operators can remotely monitor their progress and ensure they reach their destination without issues.
Enhanced Data Collection
By logging the pig’s passage at specific points, AGMs help verify the accuracy of inspection data, reducing errors and improving the quality of pipeline integrity assessments.
Operational Safety
AGMs provide real-time updates on pig movements, allowing operators to react quickly to unexpected stops or anomalies, minimizing risks.
Reduced Costs
Effective use of AGMs can prevent unnecessary re-runs of inspection tools, saving time and resources.
Best Practices for AGM Deployment and Usage
Strategic Placement
AGMs should be placed at critical points along the pipeline, such as: launchers and receivers, major bends or elevation changes, and areas with known risks, like high-stress zones or crossing points.
The spacing between AGMs should balance operational needs and cost-efficiency, ensuring adequate coverage without over-deployment.
Regular AGM Calibration and Testing
To ensure reliable performance, AGMs must be calibrated regularly and tested before each run. This minimizes the risk of false readings or missed pig passages.
Integration with Advanced Technology
Modern AGMs, like APEX AGM developed by the Propipe North America team of engineers, can integrate with software platforms like PigView Web, which allows for real-time data streaming and remote monitoring. Leveraging such technology improves efficiency and reduces manual labour.
Data Validation
After an in-line inspection run, data logged by AGMs should be cross-referenced with pigging tool data to confirm accuracy. This practice ensures that pipeline integrity assessments are based on reliable information.
Training and Maintenance
Operators must be trained on AGM functionality and troubleshooting. Routine maintenance of AGMs, including battery checks and firmware updates, ensures consistent performance during operations.
Future Trends in AGM Technology
The role of AGMs in pipeline monitoring is evolving with advancements in technology. Emerging trends include:
- Machine Learning Integration. Algorithms that can analyze AGM data for patterns, reducing false positives and enhancing predictive maintenance.
- Enhanced Connectivity. AGMs equipped with LTE or satellite communication modules for real-time updates, even in remote areas.
- Durability Improvements. AGMs are designed to withstand extreme environmental conditions, ensuring reliability in diverse terrains.
Above Ground Markers (AGMs) are a cornerstone of effective pipeline monitoring, offering accurate pig tracking, enhanced data validation, and improved operational safety. By following best practices, operators can maximize the value of AGMs in maintaining pipeline integrity. As the industry continues to innovate, AGMs will play an even more significant role in ensuring the safety and efficiency of pipeline systems. If you’d like to explore how AGMs can enhance your pipeline integrity management strategy, we are happy to help.
Feel free to reach out for more insights or tailored solutions.
